Description

OPERATING
1) Connecting AC power supply. (Make sure the correct voltage.) AC100V /
AC110V / AC220V / AC240V
2) Connecting the Level Sensor into the Socket (sensor 1 and 2).
3) Push the “MODE” knob to select mode A or B apply for your actually tank
control.
4) Adjust the two Float Sensors position, high level (sensor 1) for STOP and low
level (sensor 2) for ACTIVE.
5) Connecting the Power Plug of control power pump into the Control Power
Output Socket.
6) You can select the “TIMER” function to protect if the high level sensor 1
failure. Please push the “TIMER” knob according the table for the
continuity, 60 seconds, 120 seconds, 180 seconds protection. It will auto
stop the output control and buzzer alarm when the time out but the output
still active.
7) It will clear the TIMER counter when the output is stop active before TIMER
time out.
8) It must push the function key “RESTART” for stop the alarm and reset the
function for continue running.
9) It has the delay active function for protect the output control equipment.
10) It has buzzer alarm when the float sensor install in wrong position of Mode
B.

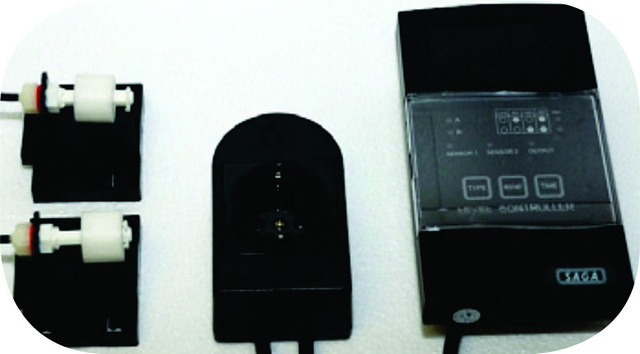

DESCRIPTION
1. Mode A indicator 9. Restart function key
2. Mode B indicator 10. Timer function key
3. Timer lamp 11. Float Sensor 1 plug in socket
4. Timer lamp 12. Float Sensor 2 plug in socket
5. Output indicator 13. Fuse
6. Float Sensor 2 indicator 14. Power plug
7. Float Sensor 1 indicator 15. Control output power socket
8. Mode A/B select key
